35mm Hinge Locating Ruler: Adjustable Cabinet Door Installation Tool for DIY and Professional Use

Installing cabinet hinges accurately is a fundamental yet tricky task in woodworking and furniture assembly, where even a slight misalignment can result in doors that don't close properly or sit unevenly. This dedicated 35mm hinge punch locator tool is designed to eliminate that guesswork, providing a physical template for consistent hole placement. It is specifically engineered for use with 35mm extended arm and middle bend hinges, commonly used in kitchen cabinets, wardrobes, and built-in furniture. The tool's standout feature is its adjustable margin, allowing you to select from four precise settings to tailor the hinge's inset from the door edge, ensuring a professional finish whether you're a seasoned tradesperson or a confident DIY enthusiast tackling a home project.

Features and Construction

This hinge locator is built with practicality and repeated use in mind, combining specific materials and design features to deliver reliable performance. Its construction focuses on providing a stable platform for marking and a durable cutting component to withstand the pressures of marking pilot holes in various woods.

Material and Build

The primary frame of the locator is made from aluminium alloy, a material chosen for its favourable strength-to-weight ratio. This makes the tool lightweight enough for easy, single-handed operation during prolonged use, yet sufficiently rigid to prevent flexing and ensure marking accuracy. The integral cutting element is a limit tapper blade fabricated from a hard alloy. This blade has been subjected to a high-temperature heat treatment process, a technique that increases the metal's hardness and enhances its resistance to wear. The result is a blade that stays sharp through multiple uses, capable of creating clean, defined marks or starter holes without blunting quickly, which is essential for a tool of this nature.

Size and Practical Fit

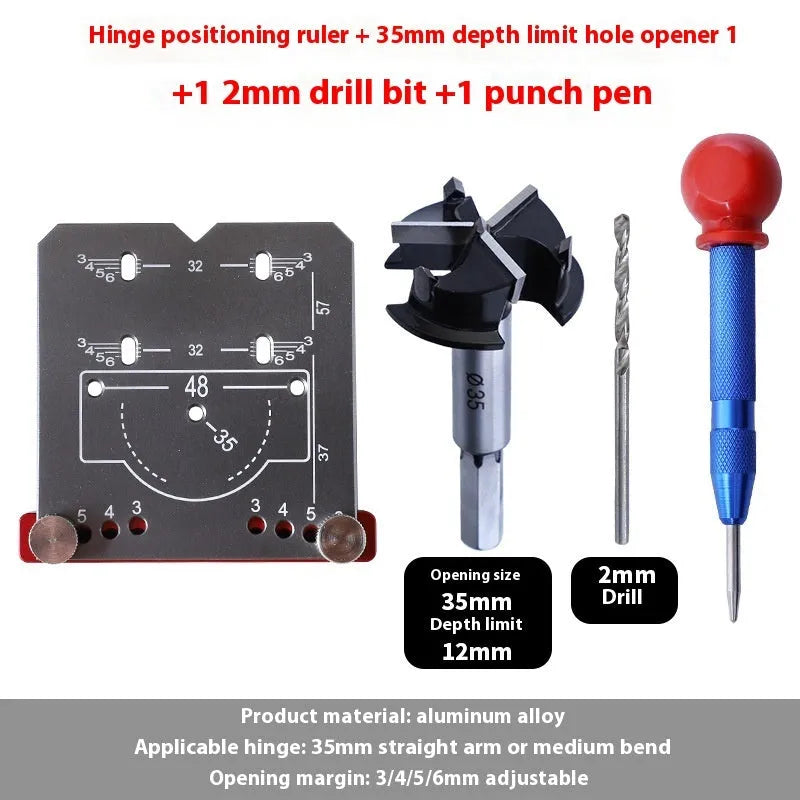

The tool is precisely configured for the European standard 35mm cup hinge, the most common hinge type for modern kitchen cabinets and wardrobes. Its design accommodates both extended arm and middle bend hinge variants, covering a wide range of cabinet door styles and thicknesses. The core functional adjustment is the margin selector, which offers four fixed positions: 3mm, 4mm, 5mm, and 6mm. This adjustability is crucial as it allows you to set the exact distance the hinge plate will sit from the edge of the cabinet door, a dimension that affects both the door's swing and its final appearance. By providing these specific settings, the tool removes measurement errors and ensures batch consistency when installing multiple hinges.

Uses and Placement

This tool is designed for a clear and specific application: the accurate installation of concealed cabinet hinges. Its value is realised in scenarios where precision and repeatability are paramount, from one-off furniture repairs to complete kitchen fittings.

Event or Professional Use

For kitchen fitters, carpenters, and professional furniture installers, this locator acts as a time-saving jig that guarantees every hinge is positioned identically. This consistency is vital for ensuring all doors in a run of cabinets align perfectly, swing cleanly, and present a uniform gap. It eliminates the need for manual measuring and marking for each hinge, significantly speeding up the installation process while reducing the risk of costly errors that require re-drilling and filler work. The durability of the hard alloy blade means it can be relied upon throughout a full working day or across multiple jobs without a drop in performance.

Everyday Home Use

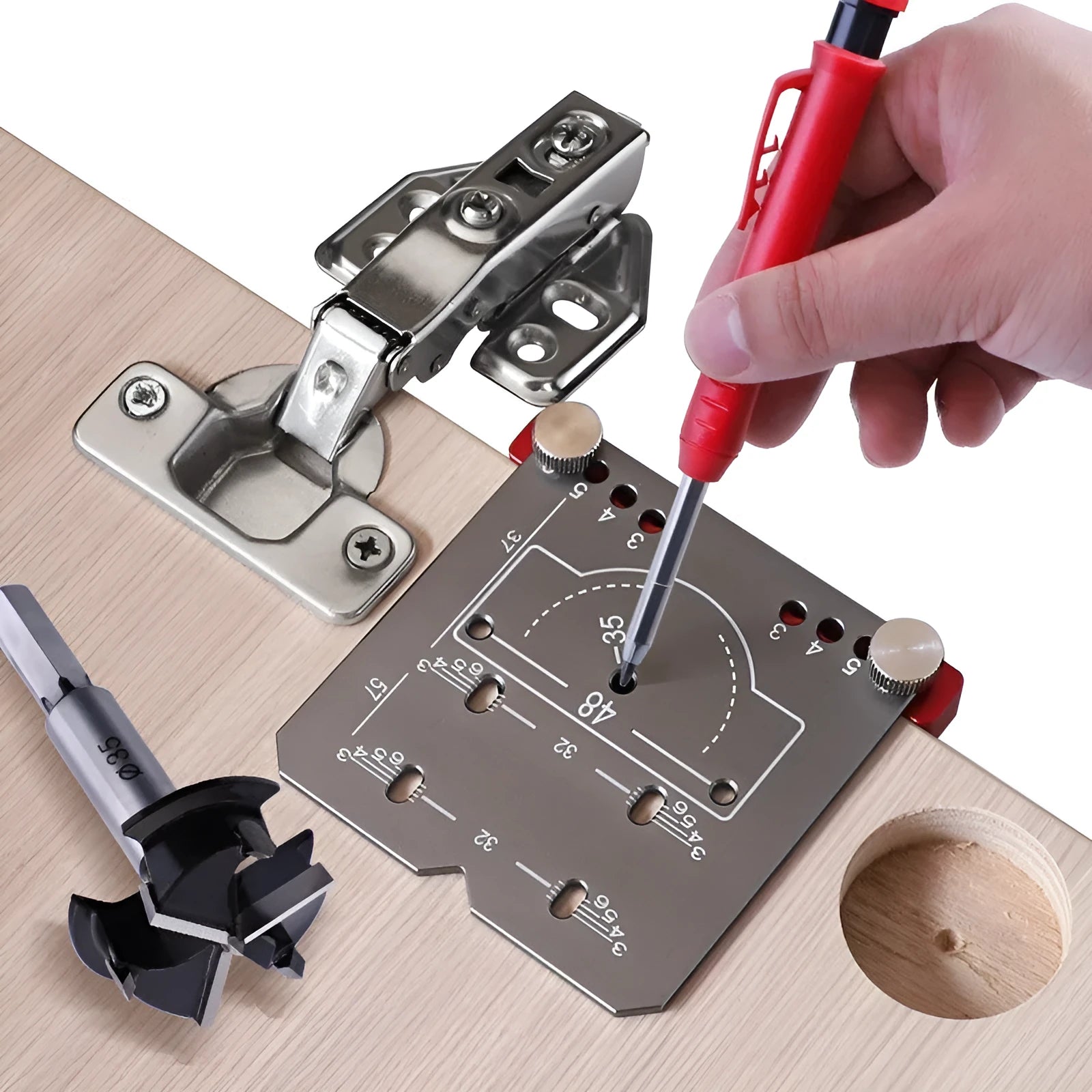

For the DIY homeowner, this tool demystifies what can be a daunting part of assembling flat-pack furniture or refurbishing old cabinets. It provides the confidence to undertake hinge installation or replacement, knowing that the critical hole placement is guided accurately. Whether you're building a new wardrobe, updating kitchen cabinet doors, or repairing a loose hinge on a bathroom vanity, the locator ensures a tidy, functional result. Its straightforward operation—set the margin, position the tool, and press—makes it accessible even for those with limited woodworking experience, turning a precise craft task into a simple, repeatable process.

Benefits and Buying Value

The value of this tool lies in its ability to transform a skilled, error-prone task into a simple, repeatable operation. It offers tangible benefits through improved results, time savings, and the reduction of material wastage from mistakes.

Reuse and Low Maintenance

As a dedicated jig, this tool is built for reuse across countless projects. The aluminium alloy body is resistant to corrosion and will not degrade with normal use, while the heat-treated hard alloy blade maintains its edge over time. Maintenance is minimal; keeping the tool clean and storing it safely is typically all that's required. Its longevity means it represents a single investment that can be applied to numerous future jobs, from minor home repairs to major renovation work, providing ongoing value long after the initial purchase.

Why Choose This Product

This hinge locator stands out because it addresses a very specific need with a focused, no-nonsense design. Unlike generic marking tools or makeshift methods, it is engineered exclusively for 35mm hinges, ensuring perfect compatibility. The inclusion of four pre-set margin options (3mm, 4mm, 5mm, 6mm) offers flexibility that many fixed locators lack, allowing you to achieve different aesthetic or functional results. The combination of a lightweight aluminium body and a professionally hardened cutting blade strikes a balance between user comfort and long-term durability. For anyone regularly working with cabinet furniture, this tool shifts hinge installation from a chore requiring concentration and skill to a quick, foolproof step in the process.
