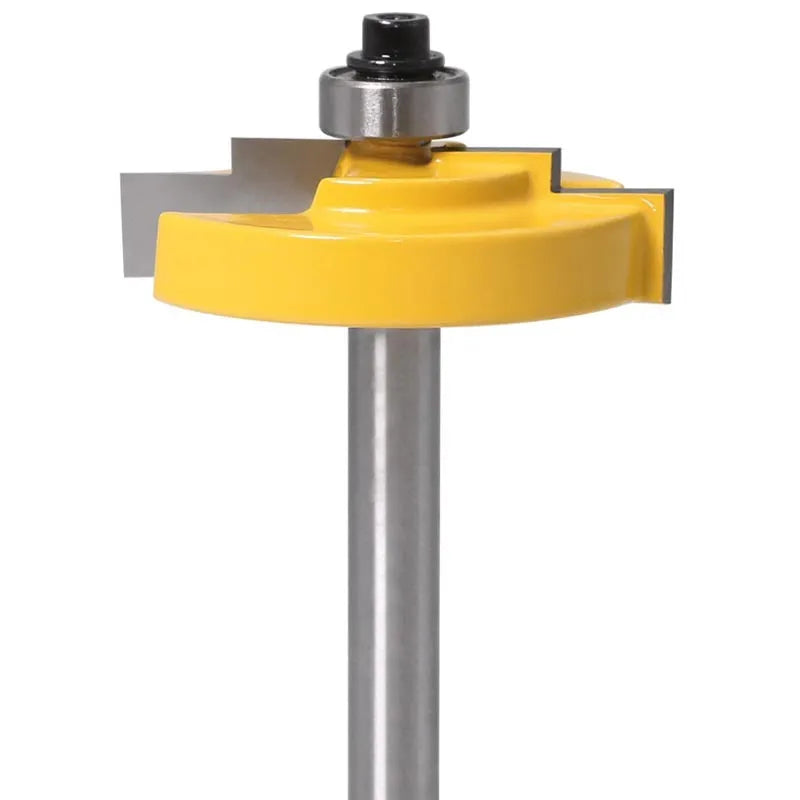

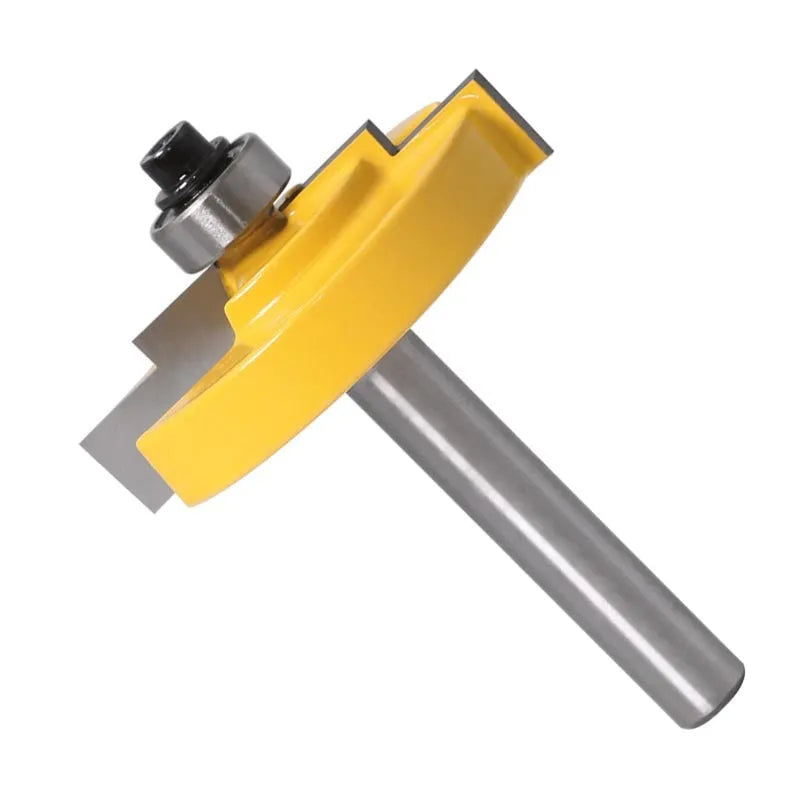

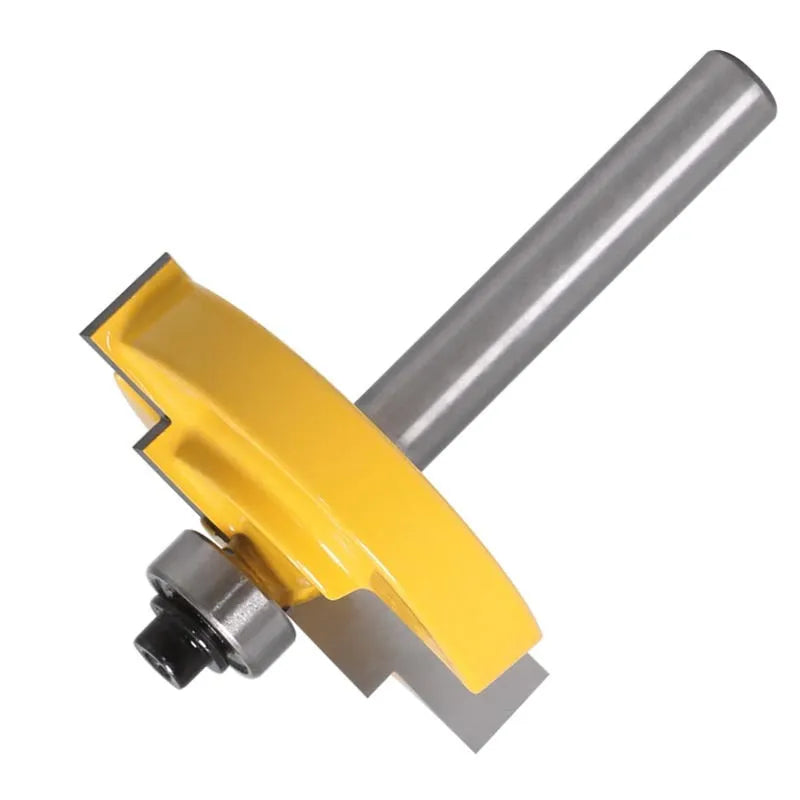

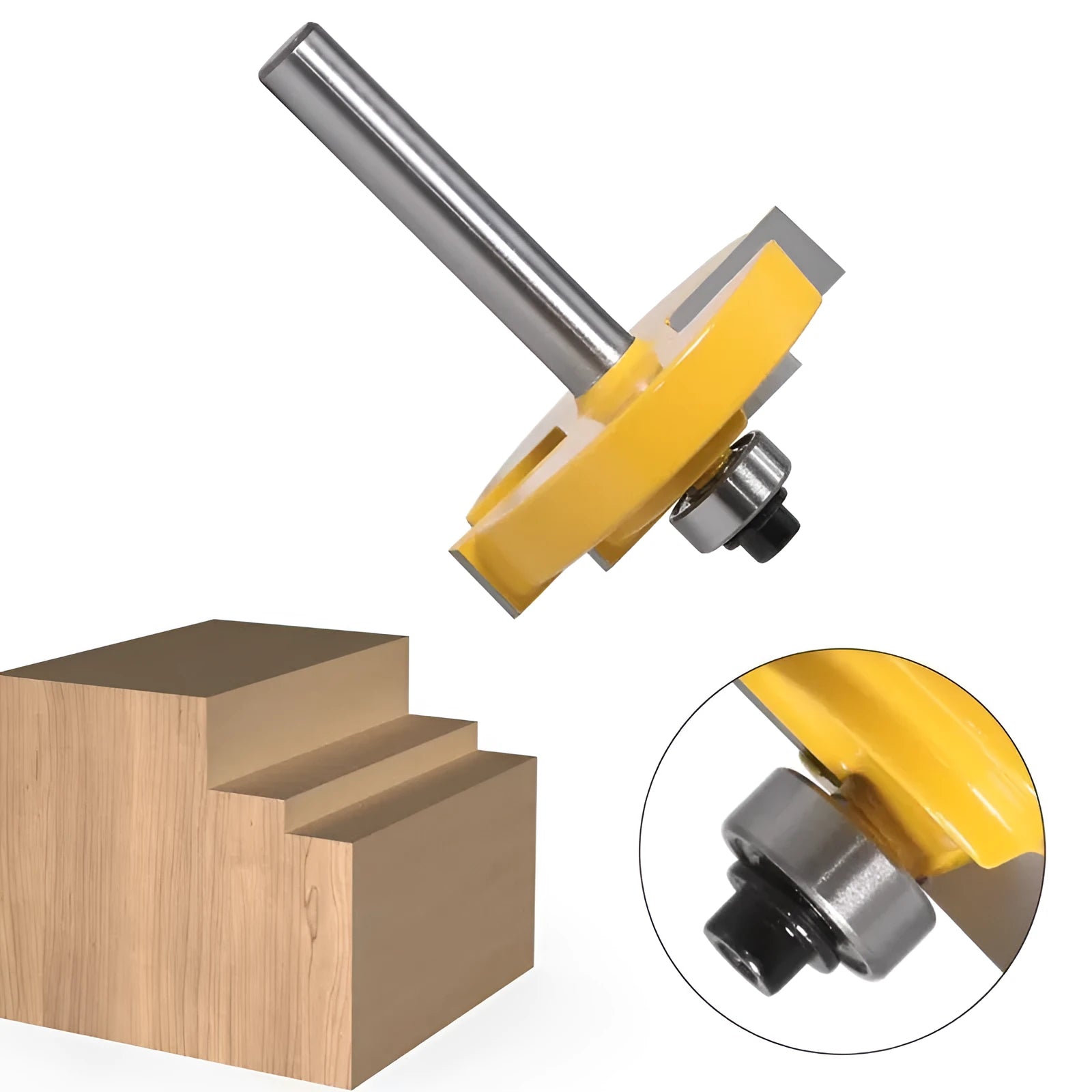

8mm Shank Carbide Step Knife for Door Hinge and Window Fitting Routing

This specialised router cutter, often termed a step knife, is constructed for woodworkers and joiners requiring precise cavities for hardware installation. With an 8 mm round shank designed for a secure hold in standard router collets, it facilitates the creation of recesses for door hinges, lock plates, and window fittings within cabinetry and joinery projects. Its metric system specifications ensure compatibility with common design plans, while the coated carbide blade material is selected for its capacity to maintain a cutting edge through repeated use in wood and similar materials. The tool's design parameters, including a 47.62 mm centre minimum cutting diameter, target the specific dimensions needed for many standard hardware components.

Features and Construction

This cutter's specifications are defined for controlled, repeatable results in professional and workshop environments. The measurable data provided dictates its operational limits and fitment requirements.

Material and Build

The cutting component is fabricated from carbide, a material recognised for its hardness and edge retention in woodworking applications. A coating has been applied to the blade, which can assist in reducing heat buildup and material adhesion during the cutting process. The tool features two effective cutting edges and two corresponding slots, a configuration aimed at balancing cutting efficiency with adequate chip removal to maintain a clear cutting path.

Size and Practical Fit

The cutter's physical dimensions are central to its application. It has an overall length of 69 mm, with a blade length and diameter both measuring 12.7 mm. The shank diameter is precisely 8 mm, a common size ensuring compatibility with many routers. The functional and useful lengths are both listed as 12.7 mm, defining the active cutting portion of the tool. These measurements combine to offer a tool suited for recessing work where depth and diameter control are paramount.

Uses and Placement

This step knife is purpose-built for specific routing tasks in woodworking and furniture making, where flush-fitting hardware is required.

Event or Professional Use

In professional cabinetry, joinery, and door fitting, this tool allows for the efficient and accurate machining of recesses to accommodate hinges, locks, and other window or door fittings. The maximum cutting diameter of 47.62 mm and a centre minimum cutting diameter of the same measurement provide a clear operational range for common hinge sizes. The specified maximum depth of cut of 17.46 mm guides the user on how deep a cavity can be cleanly formed in a single pass, which is critical for achieving a professional finish without damaging the workpiece or the tool.

Everyday Home Use

For the serious DIY enthusiast undertaking projects like fitting new internal doors, building cabinets, or installing window hardware, this cutter offers a dedicated solution. Its predefined dimensions remove guesswork, helping users achieve consistently neat results that ensure hardware sits flush with the surface. The metric specifications allow for straightforward following of European or metric-based project plans and hardware instructions.

Benefits and Buying Value

The value of this tool lies in its targeted design, which translates to practical advantages for the user in terms of results and tool longevity.

Reuse and Low Maintenance

The use of carbide as the blade material is a key factor in the tool's potential for reuse across multiple projects. Carbide's resistance to wear compared to standard high-speed steel can lead to a longer service life before sharpening or replacement is needed, assuming use within its intended parameters. The simple, dedicated design means there are no complex adjustments, focusing maintenance on basic care like keeping the shank clean and storing the tool properly to protect the cutting edges.

Why Choose This Product

This step knife is selected for its direct correspondence to a specific woodworking task—routing recesses for door and window fittings. Its value is demonstrated by the precise match between its technical specifications, such as the 47.62 mm cutting diameter and 17.46 mm depth, and the common requirements of that task. For users who regularly perform this operation, a dedicated tool of this nature can improve efficiency and finish quality over attempting the same job with a more generic cutter, relying on the supported data for its ball diameter, cutting dimensions, and shank size.
