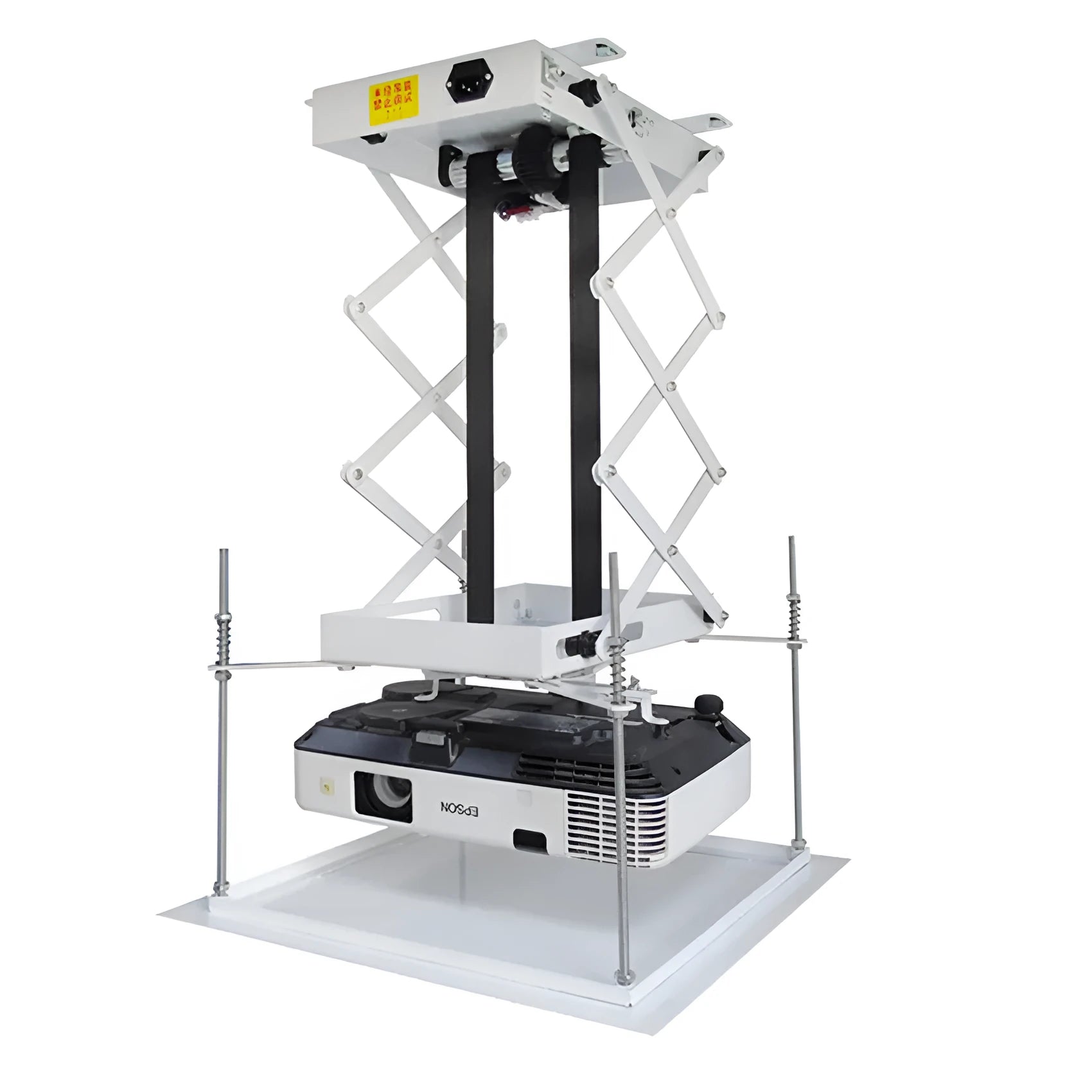

Electric Projector Ceiling Lift with Wireless Remote Control and 0.8m, 1m, or 1.5m Travel

Installing a projector often involves a compromise between optimal screen placement and a clean, unobtrusive installation. Traditional fixed mounts lock your projector in one position, while manually adjustable brackets require physical access. This electric projector ceiling hanger offers a motorised solution. Its core function is to silently raise or lower your projector through a travel distance of either 0.8, 1, or 1.5 metres at the touch of a button on the included wireless remote. This allows you to fine-tune the image projection for different screen setups or room configurations without ever needing a ladder. Designed with an ultra-thin 10cm chassis, it maintains a low profile against your ceiling, while its robust construction supports a maximum load of 10kg, accommodating a wide range of home cinema and professional projectors.

Features and Construction

The build of this electric lift focuses on reliable operation and practical integration into your ceiling space. Its design specifications provide clear parameters for installation and use, ensuring compatibility with your projector and room layout.

Material and Build

The unit's operation is driven by a 48W synchronous motor, chosen for its consistent performance and quiet operation during lifting and lowering cycles. This motor is integrated into the chassis and is powered by standard UK 220V/50Hz mains electricity. The structural components, including the chassis and the 6cm high lifting claw, are constructed from steel to provide the necessary strength for the stated 10kg maximum load capacity. This load rating is a critical specification to check against your projector's weight before purchase and installation.

Size and Practical Fit

The physical dimensions of the mount are key for installation planning. The chassis itself is 10cm in height, contributing to its slim profile. The bottom plate, which sits flush against the ceiling, has an outer diameter of 48cm x 48cm and an inner fixing diameter of 42cm x 42cm. The manufacturer recommends creating a ceiling opening of 45cm x 45cm to accommodate the unit. When fully extended, the mechanism adds 18cm of length to the projector's own height; therefore, the total drop from the ceiling is the projector's height plus this 18cm extension. The unit's gross shipping weight is 10.5kg.

Uses and Placement

This electric lift is designed for scenarios where projector height needs to be variable but controlled from a distance. It moves beyond a simple fixing point to become an adjustable component of your AV setup.

Event or Professional Use

In meeting rooms, lecture halls, or event spaces, the ability to adjust a projector's height remotely is a significant practical advantage. It allows technicians to quickly correct sightlines or focus without interrupting a presentation. The 0.8m to 1.5m travel range provides substantial adjustment to suit different screen sizes or audience seating layouts. The wireless remote control means adjustments can be made from the back of the room or a tech booth, facilitating smoother event management. The 10kg load capacity covers many standard portable and installation projectors used in professional settings.

Everyday Home Use

In a home cinema, the lift enables a projector to be stored neatly against the ceiling when not in use, preserving the room's aesthetics, and then lowered to the perfect position for viewing. This is particularly useful in multi-purpose rooms. The ultra-thin chassis helps the unit blend in when retracted. For households with different users or screen configurations, the remote allows easy adjustment without physical strain or the need for tools. It provides a permanent, high-quality installation that offers the flexibility usually associated with more temporary setups.

Benefits and Buying Value

The value of this product lies in the combination of convenience, installation quality, and the specific technical solution it provides for projector mounting challenges.

Reuse and Low Maintenance

As a fixed installation component, the lift is designed for long-term use. The synchronous motor is a reliable type for repetitive lifting tasks. There are no consumable parts mentioned, suggesting the unit is intended for ongoing operation with minimal maintenance beyond ensuring the power connection remains secure. Its construction from steel for key load-bearing parts supports its role as a durable mounting solution intended to last for the lifespan of multiple projectors.

Why Choose This Product

This electric hanger is chosen for its specific solution to variable-height projector mounting. Unlike a fixed bracket, it provides post-installation adjustability. Compared to a manual crank lift, it offers the convenience of wireless remote operation. The provided specifications—10kg load, 48W motor, specific travel lengths, and precise dimensions—allow for an informed purchase decision based on your projector's weight and your ceiling's constraints. It delivers a focused set of features: motorised lift, wireless control, and a low-profile chassis, for users who require that particular functionality.
