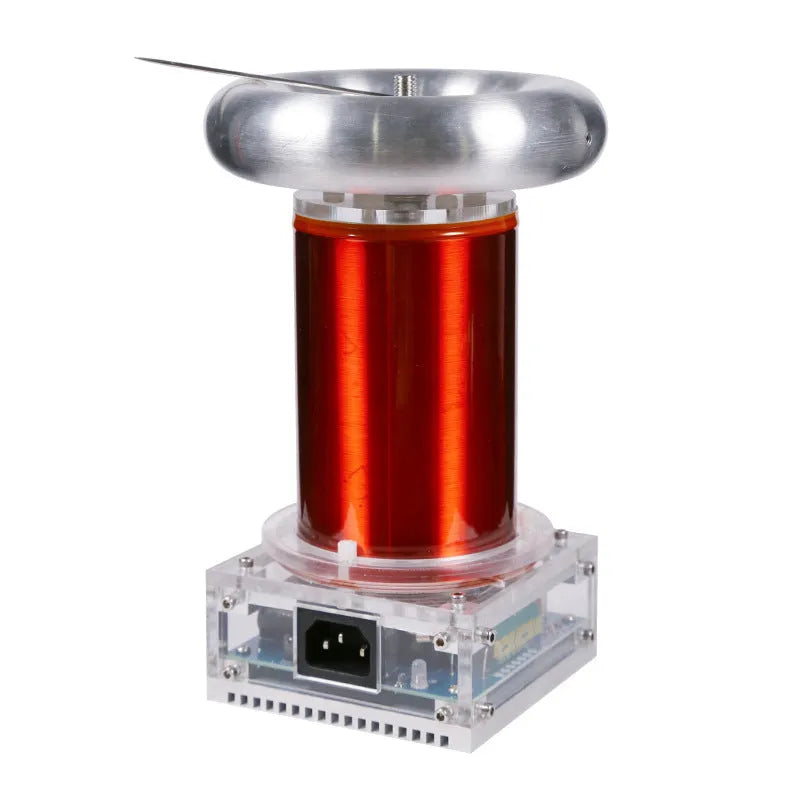

SSTC Tesla Coil Driver Board for Musical Plasma Arcs with 220V Direct Power and Arc Extinguishing

This specialised SSTC (Solid State Tesla Coil) driver board delivers a complete system for generating controlled musical plasma arcs without the complexity of traditional high-voltage setups. Designed for educational environments, science demonstrations, and visual entertainment applications, it combines 250W average power output with practical safety features. The board's most notable feature is its ability to operate directly from a standard 220V power socket without requiring a separate ground wire installation, significantly simplifying setup. With adjustable arc lengths reaching up to 20cm and a 3.5mm audio input port, it transforms musical signals into captivating plasma visualisations while maintaining operational safety through its integrated arc extinguishing mechanism.

Features and Construction

The Tesla coil driver board's construction prioritises both performance capability and practical user operation, incorporating several key technical innovations that distinguish it from basic high-voltage systems.

Material and Build

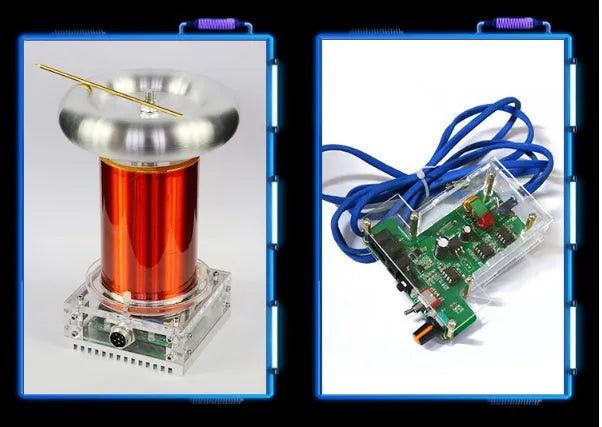

The unit features robust driver board electronics housed within a compact yet durable frame that measures 100mm in width, 115mm in depth, and 205mm in height. Weighing 1kg, the balanced construction provides stability during operation while remaining portable enough for various setup locations. The coaxial cable signal transmission system ensures clean signal transfer between components, while the integrated arc extinguishing isolation device represents a crucial safety feature that allows controlled arc initiation and termination. This device prevents uncontrolled discharges and provides a reliable on/off function that enhances operational safety.

Size and Practical Fit

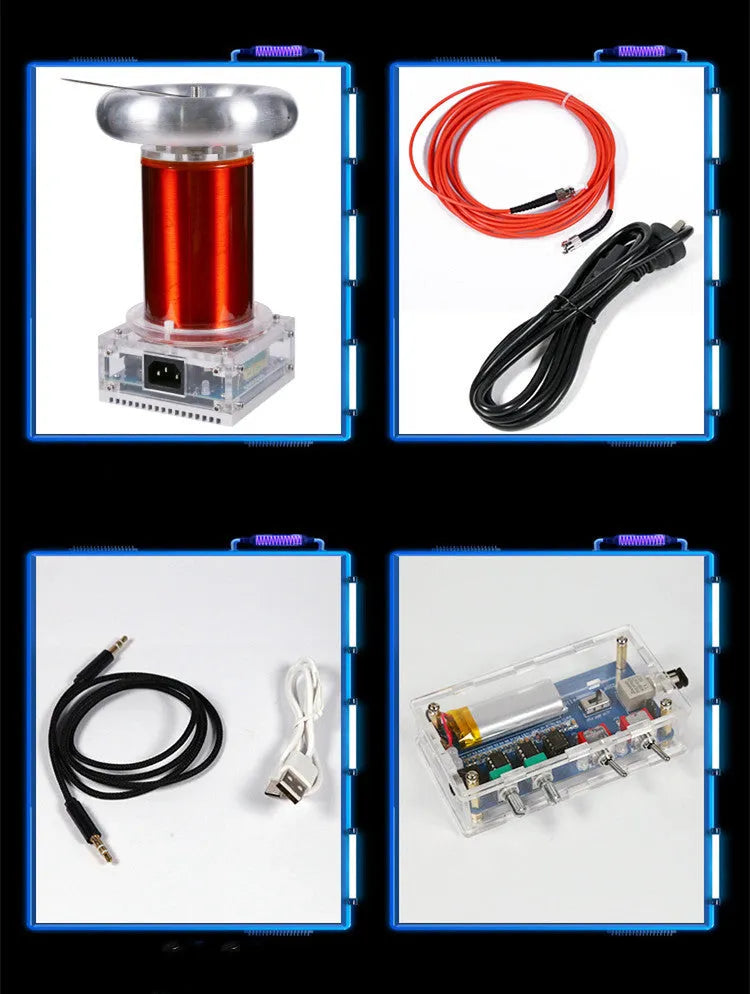

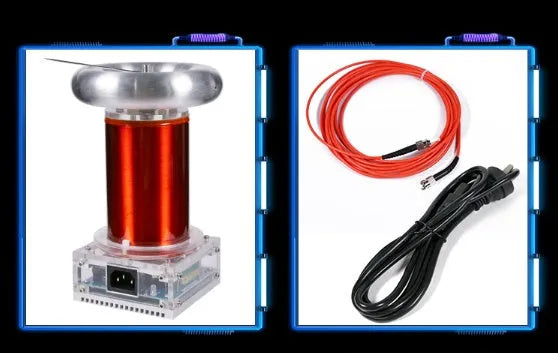

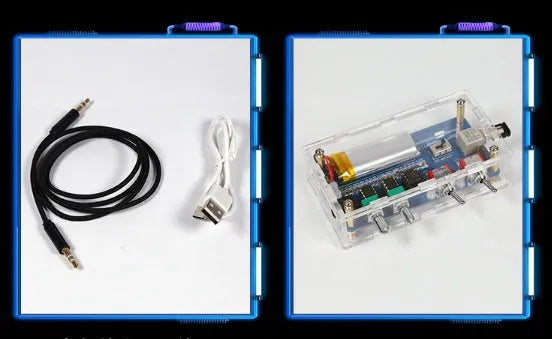

With dimensions of 100mm x 115mm x 205mm, the driver board occupies minimal space relative to its performance capabilities, making it suitable for desktop demonstrations, portable exhibition setups, and educational laboratory environments. The 1kg weight contributes to stability during operation while allowing relatively easy transportation between locations. The compact footprint ensures the unit can be positioned with adequate clearance for the 20cm maximum arc length, and the design accommodates straightforward connection of peripheral components including the optical fiber, power cable, audio input, and controller unit.

Uses and Placement

This Tesla coil driver board serves multiple practical applications across educational, demonstrational, and entertainment contexts, with its direct power connection and musical responsiveness enabling versatile deployment scenarios.

Event or Professional Use

For professional demonstrations, science exhibitions, or educational presentations, the board provides reliable performance with its 250W average power output and 200VA capacity. The 20cm adjustable arc length allows presenters to scale visual impact according to venue size and audience distance, while the arc extinguishing feature ensures safe start and stop transitions during scheduled presentations. The direct 220V power connection eliminates venue preparation requirements for ground wiring, and the 3.5mm audio input enables synchronisation with presentation soundtracks or musical performances. Professional users benefit from the recommended 3-5 minute operational periods, which balance visual impact with equipment longevity.

Everyday Home Use

For enthusiasts and home demonstrators, the board offers simplified operation with clear setup procedures and enhanced safety features. The thimble positioning on the pressure equalization ring (extending 2-3cm) and straightforward controller operation make initial setup achievable without specialised technical knowledge. Home users can safely operate the system by maintaining the recommended 1m safety distance and following the specific sequence of adjusting the potentiometer to zero before power state changes. The compact dimensions allow storage in modest spaces when not in use, and the complete package including all necessary cables facilitates immediate setup without additional component sourcing.

Benefits and Buying Value

The driver board delivers practical value through its simplified operational requirements, safety integrations, and versatile performance capabilities that serve both educational and entertainment purposes effectively.

Reuse and Low Maintenance

The system's design emphasises repeated use with minimal maintenance requirements between sessions. The arc extinguishing isolation device reduces component stress during arc initiation and termination, contributing to consistent performance over multiple uses. The clear operational guidelines—including the 3-5 minute recommended use periods and 2-3 minute music intervals—help maintain optimal component function. Since no ground wire installation is required, the setup remains consistent across different locations without modification, and all necessary connection cables are included in the package for immediate deployment in various environments.

Why Choose This Product

This Tesla coil driver board stands out for its integrated approach to musical plasma arc generation, combining the 220V direct power connection with the arc extinguishing safety feature in a single ready-to-operate package. Unlike systems requiring complex ground wiring or multiple power supplies, this unit connects directly to standard sockets while delivering up to 20cm of adjustable arc length. The combination of coaxial signal transmission, 3.5mm audio input compatibility, and controlled arc management provides a balanced solution for users seeking both visual impact and operational safety. The complete package with all necessary components ensures immediate functionality without additional sourcing.
